Alcotest 6000

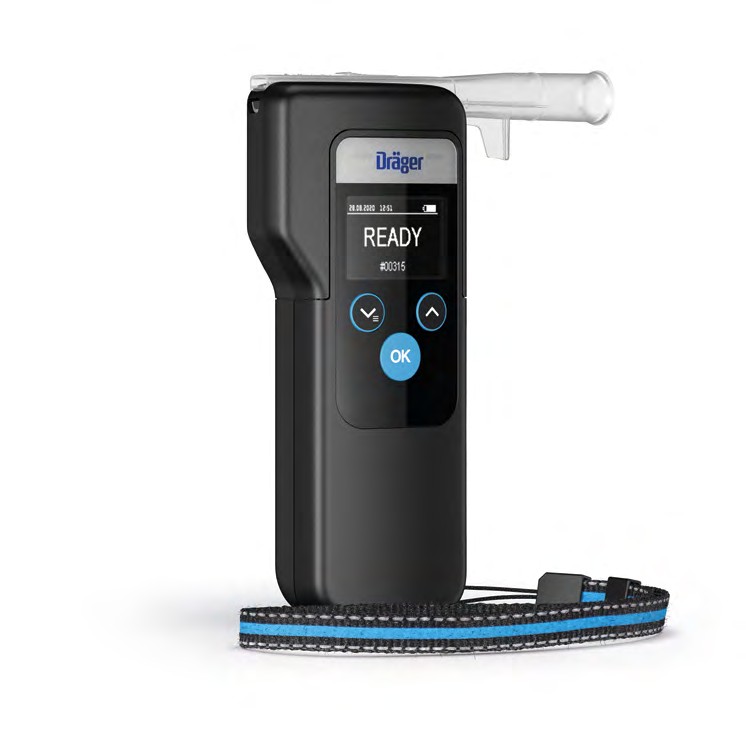

Dräger Alcotest 6000 — Alcohol Screening device

The D - räger -Alcotest 6000 allows the professional user to perform a breath alcohol test with speed and precision. The measuring technology of this small and user-friendly portable measuring device has already been proven worldwide and has been sold over 1,000,000 times.

Technical data / ordering — catalogue p. 223

Alcohol and Drug Testing
Dräger Alcotest 6000                                             Order No.

-Dräger Alcotest 6000 - USA                                      3706962
Mouthpiece - Package with 100 pieces                              6810690

Mouthpiece - Package with 250 pieces                              6810825
Mouthpiece - Package with 1,000 pieces                            6810830
Mouthpiece with non return valve - Package with 100 pieces        6811055
Mouthpiece with non return valve - Package with 250 pieces        68 11060
Mouthpiece with non return valve - Package with 1,000 pieces      6811065
Protection bag, black                                             8324999
Protection Bag yellow                                             8327811
Battery                                                           4543808

Technical data / ordering — catalogue p. 224

Alcohol and Drug Testing
 Dräger Alcotest 6000

                                                   - lectrochemical DrägerSensor in 1/4” technology;
                                                   E
 Measuring principle
                                                   alcohol specific
                                                   0 to 0.525 %BAC; if measurement range limit is exceeded,
 Measuring range
                                                   a message is displayed
                                                   Standard: automatic sampling when minimum volume resp.
                                                   defined blow time is reached;
 Sampling
                                                   Passive sampling without mouthpiece or manual initiation of
                                                   sampling possible
 Ready for use                                     Approx. 2 s after switching on
 Display of measurement result                     After approx. 3 s (at 0 mg/l, room temperature)
 Operating temperature                             -5 to +50 °C / 23 to 122 °F
                                                   10 to 100 % relative humidity
 Relative humidity
                                                   (non-condensing and in operating state)
 Ambient pressure                                  600 to 1,300 hPa / 17.7 to 38.4 inch Hg
                                                   Graphic backlit LCD display;
 Display
                                                   32 x 22 mm / 1.3" x 0.9" (128 x 64 pixels)
 LED                                               2-colour, to support display of results and warning messages
 Audible signal                                    Signal tone to support display messages and warnings
 Datalogger                                        Storage of last 500 tests with test numbers, date and time
                                                   1 x CR123A-Battery, charge level indicator in display,
 Power supply
                                                   with one battery up to. 1,500 breath tests can be done.
                                                   Improved Slide’n’click mouthpiece attachment;
 Mouthpiece adaption
                                                   can be fitted for right or left orientation
                                                   Hygienically, individually packaged, with tamper-proof, tamper-
 Mouthpiece                                        proof air outlet, mouthpiece ejector and spacer between mouth and
                                                   instrument housing
                                                   Measurement functions can be performed using just one button;
 Operating concept
                                                   menu navigation is via two menu button
 Calibration                                       Wet gas or dry gas calibration
 Housing                                           Impact resistant ABS/PC
                                                   Approx. 50/60 x 141 x 31 mm / 2"/2.4" x 5.6" x 1.2";
 Dimensions (W x H x D), weight
                                                   approx. 150 g / 5.3 oz., incl. battery
                                                   Direct menu-guided configuration of instrument settings
 Instrument configuration
                                                   (PIN required) No additional PC software needed
 Vibration and shock                               EN 60068-2-27, EN 60068-2-6; EN 60068-2-64
 CE marking                                        CE conform
 Norm                                              EN 15964, NHTSA, FDA Conformity, depending on configuration
 Internal clock                                    Warning or deactivation after end of service interval
 Protection type                                   IP54

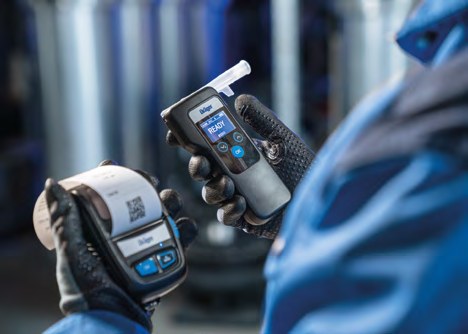

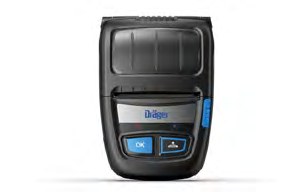

 Bluetooth (optional)                             For the communication with the -Dräger Mobile Printer BT

Source: Dräger Safety Product Catalog 2026 — Industrial Applications (US edition, ebk 9108764), pp. 222–224. Matched by exact model name. US-edition approvals (NIOSH / CSA / NFPA) and order numbers may differ for the Indian variant — confirm with Dräger Safety India before quoting.
