XAM 5800

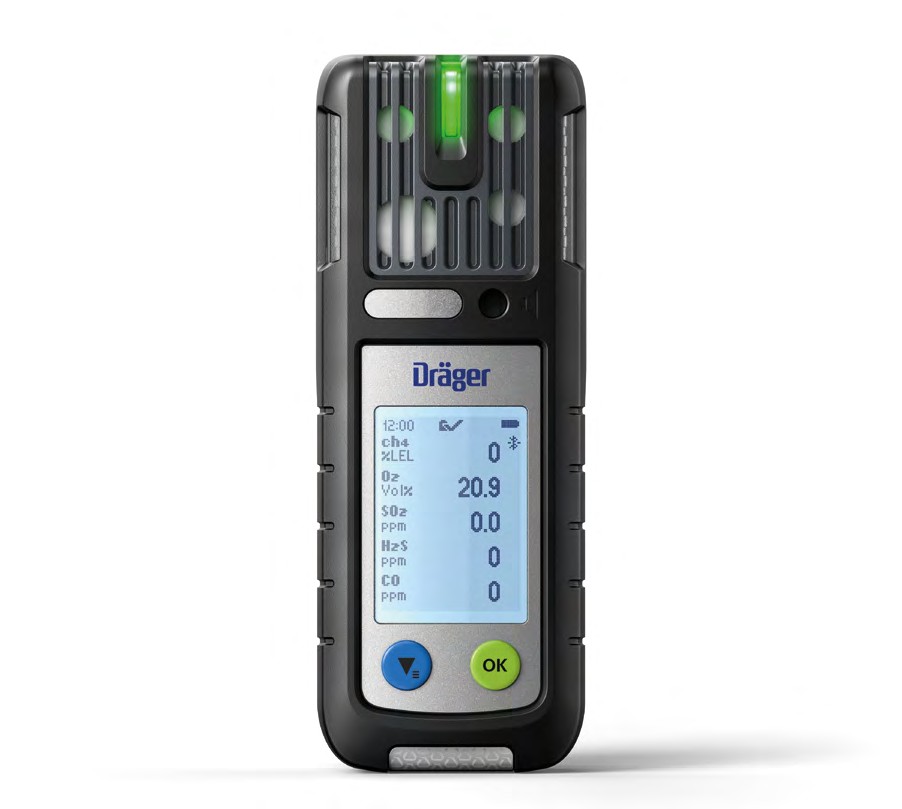

Dräger X-am 5800 — Multi-Gas Detector

The X-am 5800 multi-gas detector measures up to six gases and is equipped with a shock-resistant CatEx SR sensor. With the Dräger Gas Detection Connect software, it offers live data transmission and powerful fleet management. Designed for personal monitoring, the X-am 5800 offers the highest level of safety at a low cost of ownership.

Technical data / ordering — catalogue p. 119

Technical data

Dimensions (W x H x D)          130 x 48 x 44 mm (5.12 x 1.89 x 1.73 in)
                                typically 220 to 250 g (7.76 to 8.82 oz), depending on sensor
Weight
                                equipment
Housing                         robust 2-component housing
Dipslay                         Matrix display with high resolution
Ambient conditions
                                -20 to+50 °C (-4 to 122 F) (Measurement and storage)
Temperature                     -40 to+50 °C (-40 to 122 F) (Use in potentially explosive
                                atmospheres)
                                700 to 1300 mbar (Measurement)
Pressure
                                800 to 1100 mbar (Use in potentially explosive atmospheres)
                                10 to 95 % r.h.
Relative humidity
                                5 to 95 % r.h. short term
Protection class                IP68

Alarms
                                3 LED 'red' (gas alarms)
Visual
                                3 LED 'yellow' (device alarm)
Accoustic                       Multi-tone > 90 dB at 30 cm (12 in)
Vibration
More technical specifications
Energy supply                   NiMH battery, rechargeable, replaceable by user

                                Bluetooth 5.0 (disabled for some countries outside the EU and
Bluetooth                      outside North America, but can be retrofitted. Contact
                                DrägerService).

                                For CatEx SR and PID sensor: > 12 h (Bluetooth active)
Operating times
                                Operating with electrochemical sensors only: typical 100 h
Charging time                   <4h
Ready for measurement           < 60 s after switch-on (CatEx SR and electrochemical sensors)

                                Application of an optimised data compression method with high
                                accuracy and large storage capacity.
Data logger
                                (Typically data compression >90 % compared to the traditional
                                data logger concept with adjustable interval)

Technical data / ordering — catalogue p. 120

Technical data

Approvals
Marking Explosion protection:
                                                                I M1 Ex da ia I Ma
ATEX
                                                                II 1G Ex da ia IIC T4 Ga (usable in Ex-Zone 0)
                                                                Ex da ia I Ma
IECEx
                                                                Ex da ia IIC T4 Ga (usable in Ex-Zone 0)
                                                                CSA approval: cCSAus
                                                                Class I, Zone 0, AEx da ia IIC T4/T3 Ga
cCSAus (USA & Canada)
                                                                Class I, Div 1, Groups A, B, C, D
                                                                Class II, Div 1, Gr. E, F, G
EAC                                                             Contact Dräger for availability
                                                                2014/34/EU (ATEX)
Directives                                                      2014/53/EU (RED)
                                                                2011/65/EU (RoHS)
Manufacturer's warranty
4 years for the device (electronics and housing)
5 years for the following sensors: XXS CO LC, XXS H2S LC, XXS
O2, O2 PR. Other sensors: See DrägerSensor & gas detection
device handbook
3 years for: LEL CatEx SR)
2 years for: O2 PR
1 year for the power supply (accumulator)

Source: Dräger Safety Product Catalog 2026 — Industrial Applications (US edition, ebk 9108764), pp. 116–120. Matched by exact model name. US-edition approvals (NIOSH / CSA / NFPA) and order numbers may differ for the Indian variant — confirm with Dräger Safety India before quoting.
